A-Pillar Trim, Removing And Installing: Removing

-- Remove the cover -2-.

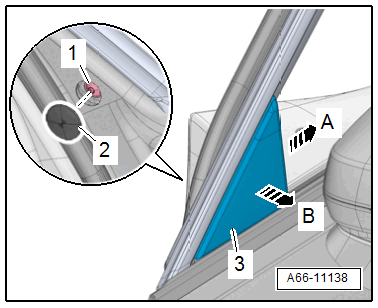

GWWA66-11138Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -1-.

-- Push out the A-pillar trim -3- in the direction of -arrow A- from the window guide and remove to the side in the direction of -arrow B-.
