Water Drain Hoses, Removing And Installing, A3 And SPORTBACK

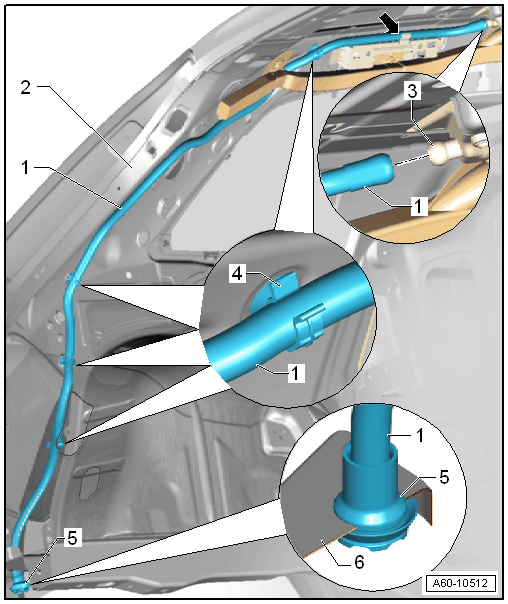

- Rear Water Drain Hose
-- Remove the side trim panels. Refer to D-PILLAR TRIM PANEL, REMOVING AND INSTALLING .
-- To remove first remove from the sliding/tilting sunroof connection.
-- Remove the water drain hose from the hose bracket.
-- Disengage the grommet from the bracket and remove the water drain hose from the wheel housing from below.
- C-Pillar
- Connection
- Hose Bracket
- Clip in the C-pillar or in the side panel in the luggage compartment.
- Push the water drain hose in the bracket
- Grommet
-- Push completely in the bracket using a soap solution.
- Bracket
