Overview - Water Drain Hoses, Sedan

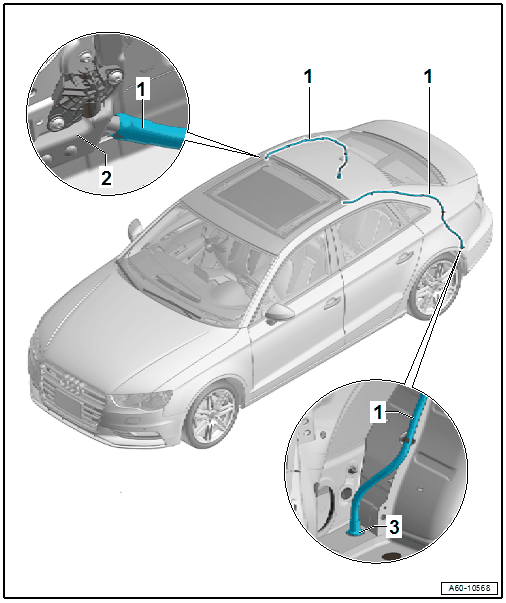

Fig 1: Exploded View Of Water Drain Hoses, Sedan
GWWA60-10568Courtesy of AUDI OF AMERICA, LLC
  1. Water Drain Hose
  2. Sunroof Frame
    • With connecting piece
  3. Grommet

    -- When installing press completely in the bracket using a soapy solution.
