Overview - Water Drain Hoses, SPORTBACK

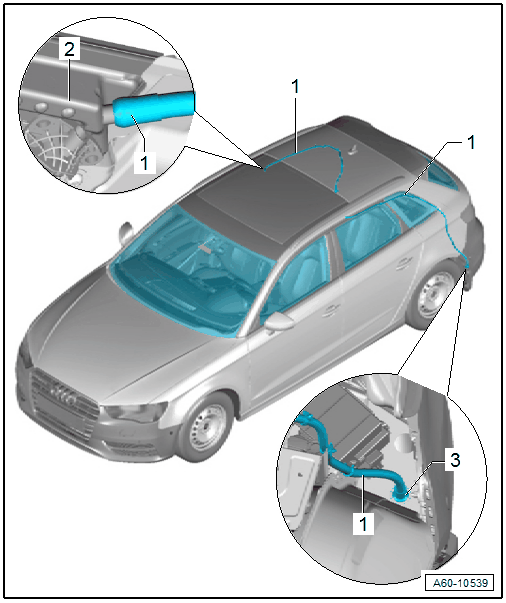

Fig 1: Exploded View Of Water Drain Hoses, Sportback

Courtesy of AUDI OF AMERICA, LLC

Water Drain Hose
- Cleaning. Refer to WATER DRAIN HOSES, CLEANING .
- Removing and installing. Refer to WATER DRAIN HOSES, REMOVING AND INSTALLING, A3 AND SPORTBACK
Sunroof Frame
- With connecting piece
Grommet
-- When installing press completely in the bracket using a soapy solution.
