Overview - Water Drain Hoses, A3

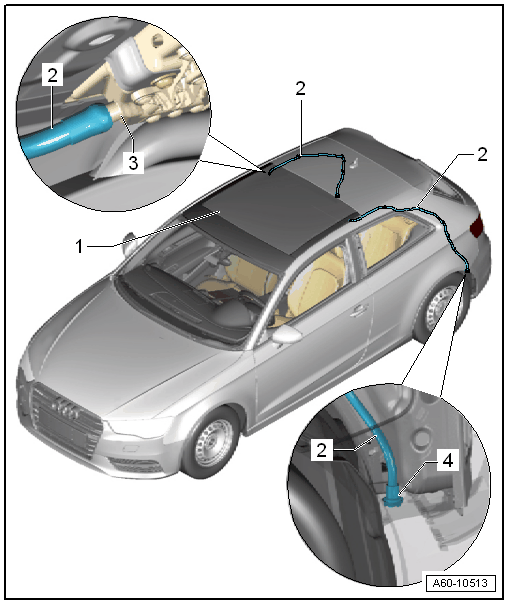

Fig 1: Exploded View Of Water Drain Hoses, A3

Courtesy of AUDI OF AMERICA, LLC

Sliding/Tilting Sunroof
Water Drain Hose
- Cleaning. Refer to WATER DRAIN HOSES, CLEANING .
- Removing and installing. Refer to WATER DRAIN HOSES, REMOVING AND INSTALLING
Connection
Grommet
-- When installing press completely in the bracket using a soapy solution.
