Wind Deflector, Removing And Installing: Removing

-- Open the sliding sunroof completely.

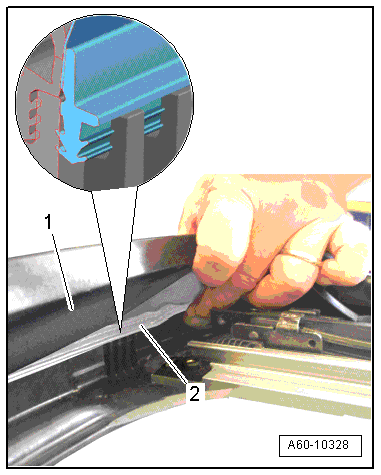

-- Push the wind deflector -1- downward and pull the left and right molding -2- from the edging.

Courtesy of AUDI OF AMERICA, LLC

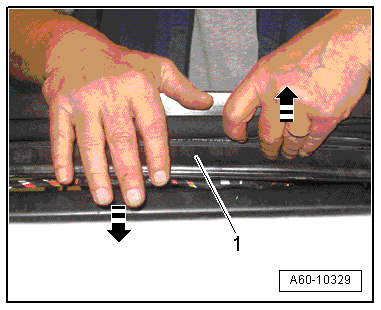

-- Push the wind deflector back down and pull the molding -1- from the edging upward from the retaining tabs.

Courtesy of AUDI OF AMERICA, LLC

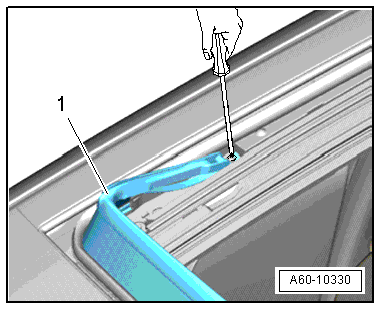

-- Remove the left and right bolts on the bearing.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the wind deflector -1- forward from the bracket and lift upward.

NOTE:

Only raise the wind deflector with retractor and disengage from the bearing at the side.
