Tension Bow, Removing

-- Open the glass panel.

-- Push the shade forward and while doing so close approximately halfway.

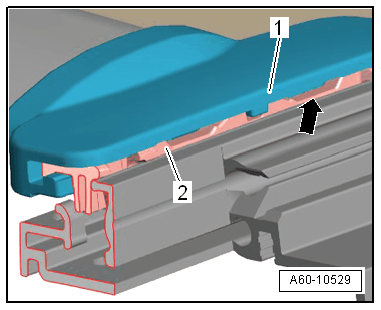

-- Push a plastic wedge in the recess -arrow- and carefully lift the slider upper section -1- out of the catch from the slider lower section.

Courtesy of AUDI OF AMERICA, LLC

• Do not lift the slider upper section too forcefully out of the slider lower section.

-- Push both sliders from the slider upper section against the slider lower section backwards and open by doing this.

-- Lift the tension bow.

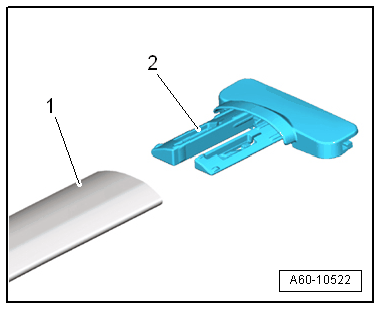

-- Remove both slider upper sections -2- sideways from the tension bow -1-.

Courtesy of AUDI OF AMERICA, LLC

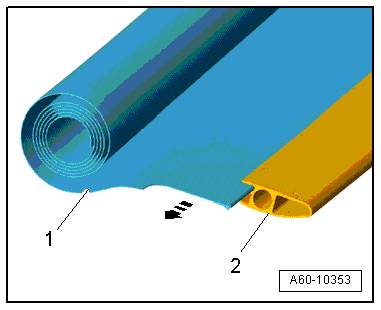

-- Remove the rail -2- sideways from the sunroof shade -1-.

Courtesy of AUDI OF AMERICA, LLC
