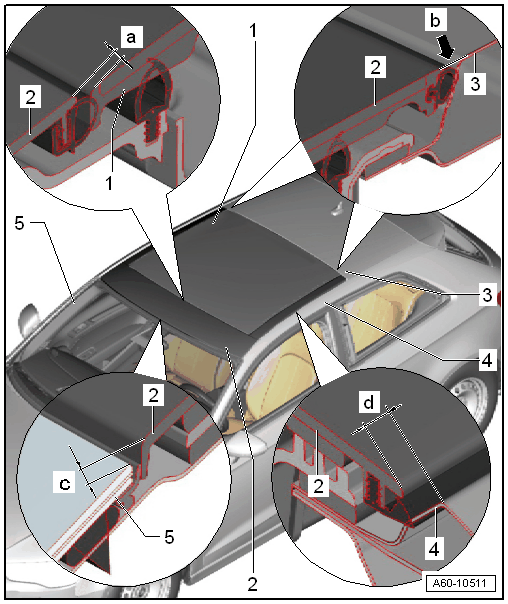

Installation Position Of The Front Trim
- Glass Panel
- Front Trim
- Dimension -a- = 2 mm ± 1 mm
- Dimension -b- = 0 + 0.5 mm trim behind the roof flush
- Dimension -c- = 1.5 mm ± 0.5 mm
- Dimension -d- = 3 mm ± 0.5 mm
- Bring the front trim to the dimensions flush to the glass panel edge and parallel to the glass panel surface.
- Roof
- Side Wall Frame
- Windshield
