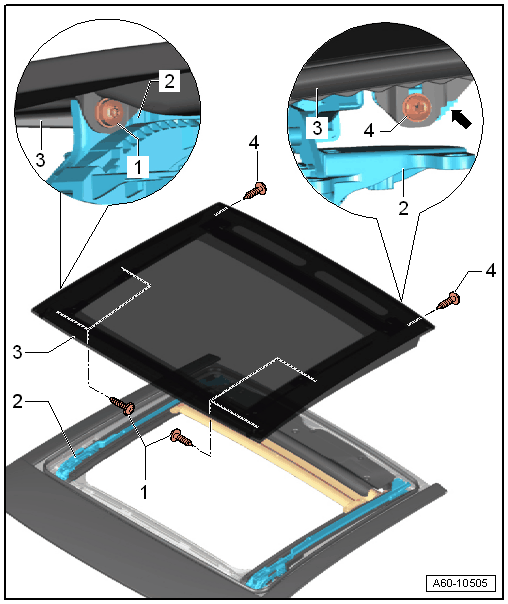

Glass Panel, Removing And Installing: Notes
CAUTION:
It is necessary to program the mechanical components or control modules on the sliding/tilting sunroof after removing and installing them using Guided Functions in Guided Fault Finding at diagnostic address 09 with the Vehicle Diagnostic Tester.
- To complete the procedure, a second technician is required to be at the following position. Refer to "With a second technician, lift the cover from the slotted guide rail guides." GLASS PANEL, REMOVING AND INSTALLING .
- Bolt
- 5.5 Nm
- Slotted Guide Rail
- Glass Panel
- Use the markings -arrow- for the rear height adjustment. Refer to GLASS PANEL, ADJUSTING .
- Perform the adaptation after installing
- Bolt
- 5.5 Nm
