Adjustment Dimensions

Courtesy of AUDI OF AMERICA, LLC

1. Glass Panel

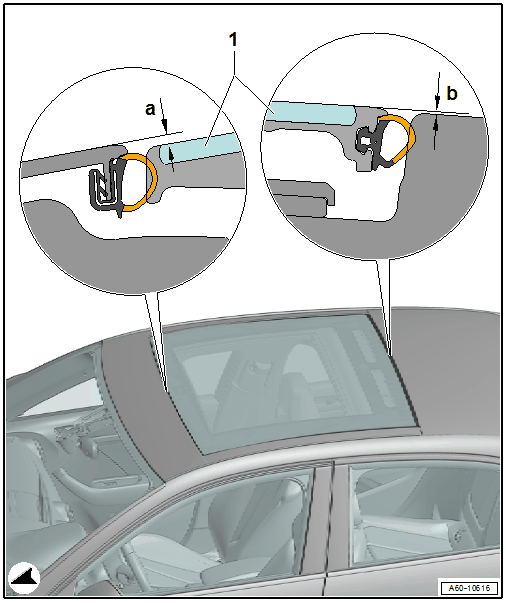

   • Dimension -a- = 1.7 mm
   • Dimension -b- = 0.5 mm

-- Remove the glass panel -1- and loosen the bolts -2- on the rear edge.

Courtesy of AUDI OF AMERICA, LLC

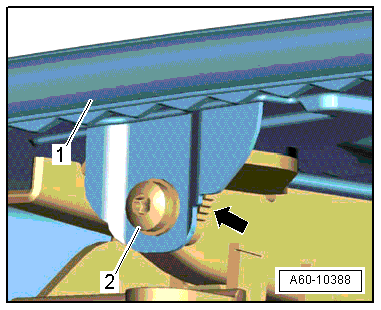

-- Loosen the center bolt on the glass panel.

-- Adjust the height setting on the center of the panel via the markings -arrow- and the adjustment dimension. Refer to GLASS PANEL, ADJUSTING .

-- Tighten the bolts on the panel rear corner to the tightening specification GLASS PANEL, ADJUSTING .

-- Close the panel and tighten the center bolts to the tightening specification GLASS PANEL, ADJUSTING .
