Driver/Front Passenger Seat Adjustment Control Head -E470- / -E471-, Removing And Installing: Removing

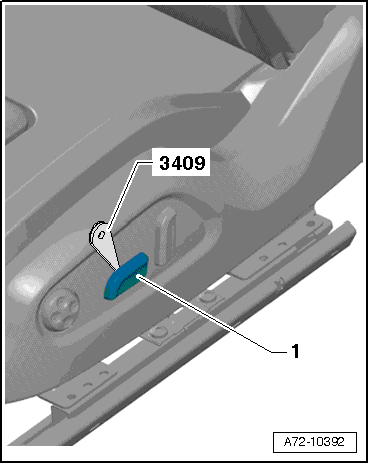

Fig 1: Pry Seat Adjustment Actuator From Retainer Using A 3409

Courtesy of AUDI OF AMERICA, LLC

-- Carefully pry out the seat adjustment actuator -1- from the retainers using the Trim Removal Wedge: 3409  .

-- Repeat the procedure on the backrest adjustment actuator.

-- Remove the seat side trim on the side sill side. Refer to SEAT SIDE TRIM ON SIDE SILL SIDE, REMOVING AND INSTALLING, POWER FRONT SEAT .

-- Remove the bolts -3 to 5-.

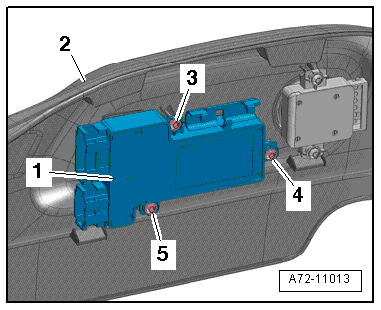

Fig 2: Identifying Seat Adjustment Control Head

Courtesy of AUDI OF AMERICA, LLC

-- Remove the control head -1- from the side sill seat side trim -2-.
