Overview - Seat Pan, Storage Compartment

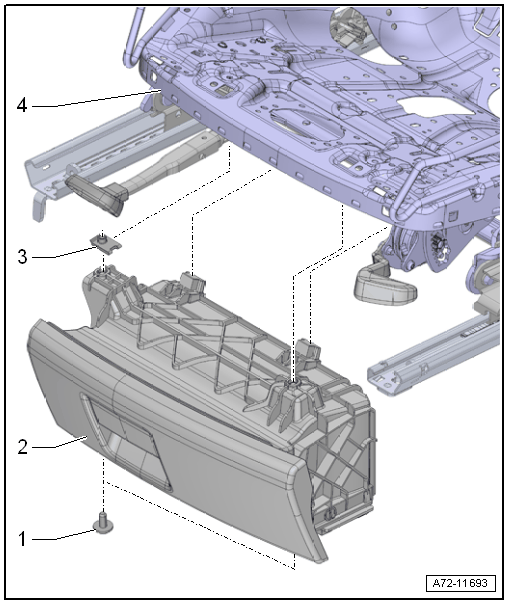

Fig 1: Exploded View Of Seat Pan, Storage Compartment

Courtesy of AUDI OF AMERICA, LLC

Bolt
- Quantity: 2
- 7.5 Nm
Storage Compartment
- Removing and Installing. Refer to STORAGE COMPARTMENT, REMOVING AND INSTALLING .
- Cannot be disassembled
- Allocation. Refer to the Parts Information.
Spring Nut
- Quantity: 2
- Attached in the seat pan
- Replace any damaged or deformed spring nuts
Seat Pan
