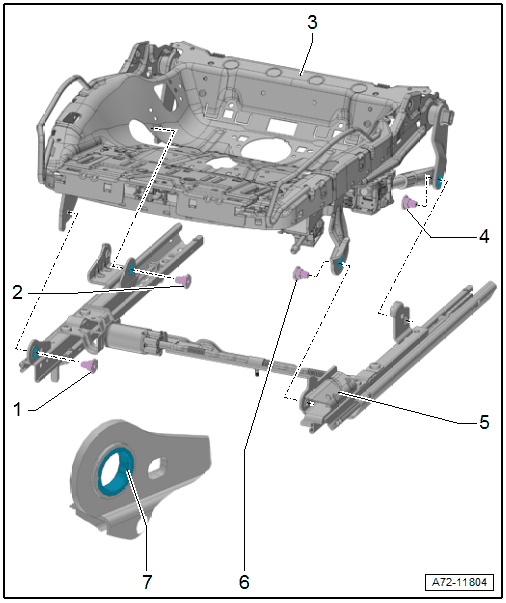

Overview - Seat Pan, Power Seat Pan Frame
Courtesy of AUDI OF AMERICA, LLC
- Bolt
- Self-locking
- Always replace after removing
- Clean the threaded hole for the bolt with a thread tap, for example
- 22 Nm
- Bolt
- Self-locking
- Always replace after removing
- Clean the threaded hole for the bolt with a thread tap, for example
- 22 Nm
- Seat Pan Upper Frame
- Bolt
- Self-locking
- Always replace after removing
- Clean the threaded hole for the bolt with a thread tap, for example
- 22 Nm
- Seat Pan Lower Frame
- Driver side: with Driver Seat Forward/Back Adjustment Motor -V28-
- Front passenger side: with Front Passenger Seat Forward/Back Adjustment Motor -V31-
- Cannot be disassembled; motor and seat pan lower frame are pre-adjusted from the manufacturer
- Removing and Installing. Refer to SEAT PAN, REMOVING AND INSTALLING, POWER FRONT SEAT .
- To replace the seat belt latch install in the new lower frame
- Bolt
- Self-locking
- Always replace after removing
- Clean the threaded hole for the bolt with a thread tap, for example
- 22 Nm
- Bushing
- Inserted in all bearing locations
- Cannot be replaced with service equipment
- The assembly part must be replaced if the bushing is damaged
