Pass-Through Cover Frame, Removing And Installing: Removing

Courtesy of AUDI OF AMERICA, LLC

-- Fold down the center armrest and open the pass-through door.

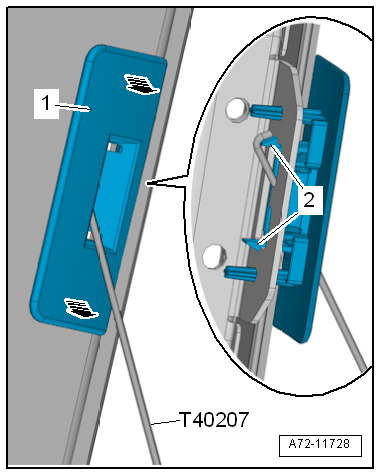

-- Unclip the trim -1- from the rear seat backrest using the :3409  -arrows-.

-- Use the :T40207  to remove the retaining tabs -2- alternating between the sides.

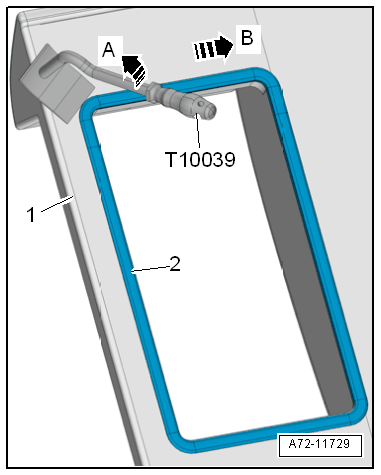

-- Pry off the cover frame -2- using the :T10039/1  from the rear seat backrest -1- -arrow A-.

Courtesy of AUDI OF AMERICA, LLC

-- Continue prying off starting at the upper left corner in direction of -arrow B-.

-- Remove the pass-through cover frame.

-- Push the cover with cushion slightly aside, and unclip the stop strip -1- from the rear seat backrests -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the stop strip.
