Overview - Headrest And Headrest Guide

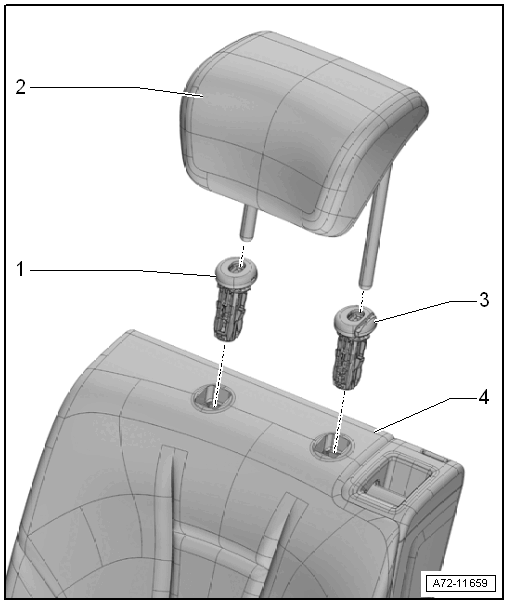

Fig 1: Exploded View Of Headrest & Headrest Guide
GWWA72-11659Courtesy of AUDI OF AMERICA, LLC
  1. Headrest Guide
    • With locking spring
    • Always installed on the rear seat backrest on the right side
    • Removing and Installing. Refer to HEADREST GUIDE, REMOVING AND INSTALLING .
    • The guide tab must engage in the mount cut-out on the headrest guide
    • Push in until the retaining tabs correctly latch to the backrest frame.
  2. Headrest
  3. Headrest Guide
    • With the headrest height adjustment button
    • Always installed on the rear seat backrest on the left side
    • Removing and Installing. Refer to HEADREST GUIDE, REMOVING AND INSTALLING .
    • The guide tab must engage in the mount cut-out on the headrest guide
    • Push in until the retaining tabs correctly latch to the backrest frame.
  4. Rear Seat Backrest
