CUPHOLDER, Removing And Installing: Removing

Courtesy of AUDI OF AMERICA, LLC

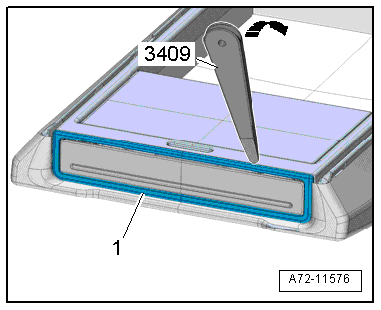

-- Fold down the center armrest.

-- Pry off the trim -1- using the :3409  -arrow-.

-- Remove the trim from the center armrest.

-- Open the flap -1- on the cupholder.

Courtesy of AUDI OF AMERICA, LLC

-- Release the spring -2- using a screwdriver and carefully remove the cupholder alternating between the sides.
