Seat Angle Adjustment Handle, Removing And Installing: Removing

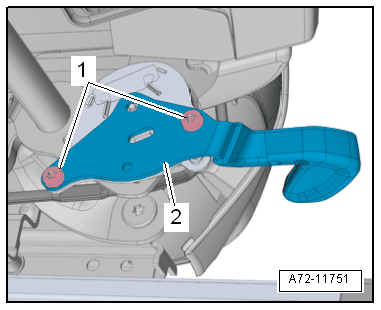

GWWA72-11751Courtesy of AUDI OF AMERICA, LLC

-- Move the front seat all the way to the rear in its highest position.

-- Equipment level with storage compartment: remove the storage compartment. Refer to STORAGE COMPARTMENT, REMOVING AND INSTALLING .

-- Remove bolts -1- and remove handle -2- from the seat angle adjustment.
