Overview - Front Backrest, Super Sport Seat

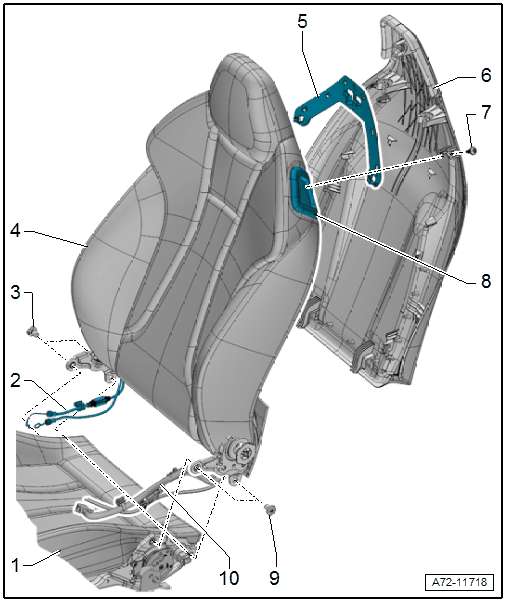

Fig 1: Exploded View Of Front Backrest, Super Sport Seat

Courtesy of AUDI OF AMERICA, LLC

Seat Pan
Entry Assistance Release Cable
- Only three doors: manual seat
- Quantity: 2
- Removing and Installing. Refer to ENTRY ASSISTANCE RELEASE CABLE B, REMOVING AND INSTALLING , ENTRY ASSISTANCE RELEASE CABLE A, REMOVING AND INSTALLING
Bolt
- 33 Nm
- Quantity: 2
- Self-locking
- Replace after removing.
- Threaded holes for the bolts must be cleaned, for example, with a thread tap
Front Backrest
- Removing and Installing. Refer to FRONT BACKREST, REMOVING AND INSTALLING .
Retaining Channel
- For cover and cushion
Backrest Cover
- Vehicles with cargo net: the cargo net cannot be separated from the backrest cover.
- Removing and Installing. Refer to BACKREST COVER, REMOVING AND INSTALLING, SUPER-SPORT SEAT .
- Attach under the backrest frame and then press on it until it audibly locks
- Clipped in the headrest
Bolt
- Only with backrest release
- Tightening specification. Refer to -Item ) OVERVIEW - TRIM AND BACKREST RELEASE, SUPER SPORT SEAT - Bolt
Backrest Release
- Only A3
- Removing and Installing. Refer to BACKREST RELEASE, REMOVING AND INSTALLING .
Bolt
- 33 Nm
- Quantity: 2
- Self-locking
- Replace after removing.
- Threaded holes for the bolts must be cleaned, for example, with a thread tap
Wiring Harness
- From the thorax airbag to the connector station
- Depending on optional equipment, there may be more wiring harnesses, such as for backrest heating, lumbar support
