Overview - Front Backrest, Standard Seat/Sport Seat

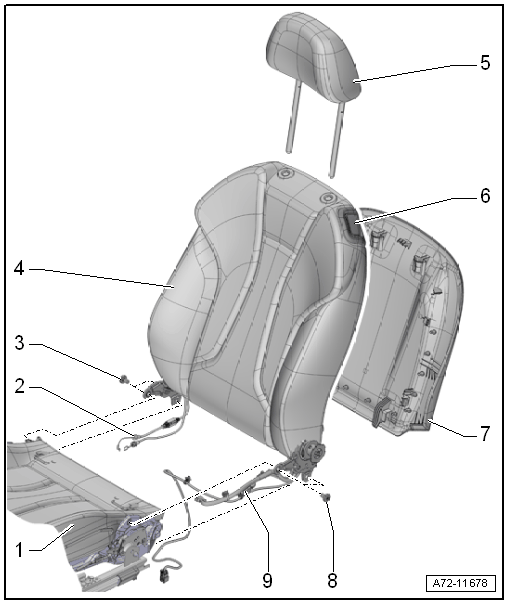

Fig 1: Exploded View Of Front Backrest (Standard Seat/Sport Seat)

Courtesy of AUDI OF AMERICA, LLC

1. Seat Pan
2. Entry Assistance Release Cable
   • Only three doors: manual seat
   • Quantity: 2
   • Removing and Installing. Refer to ENTRY ASSISTANCE RELEASE CABLE B, REMOVING AND INSTALLING , ENTRY ASSISTANCE RELEASE CABLE A, REMOVING AND INSTALLING
3. Bolt
   • 33 Nm
   • Quantity: 2
   • Self-locking
   • Replace after removing.
   • Threaded holes for the bolts must be cleaned, for example, with a thread tap
4. Front Backrest
   • Removing and Installing. Refer to FRONT BACKREST, REMOVING AND INSTALLING .
5. Headrest
   • Removing and Installing. Refer to HEADREST, REMOVING AND INSTALLING .
6. Backrest Release
   • Only A3
   • Removing and Installing. Refer to BACKREST RELEASE, REMOVING AND INSTALLING .
7. Backrest Cover
   • Vehicles with cargo net: the cargo net cannot be separated from the backrest cover.
   • Removing and Installing. Refer to BACKREST COVER, REMOVING AND INSTALLING, STANDARD/SPORT SEAT .
   • Attach under the backrest frame and then press on it until it audibly locks
8. Bolt
   • 33 Nm
   • Quantity: 2
   • Self-locking
   • Replace after removing.
   • Threaded holes for the bolts must be cleaned, for example, with a thread tap
9. Wiring Harness
   • From the thorax airbag to the connector station
   • Depending on optional equipment, there may be more wiring harnesses, such as for backrest heating, lumbar support
