Overview - Trim And Backrest Release, Super Sport Seat

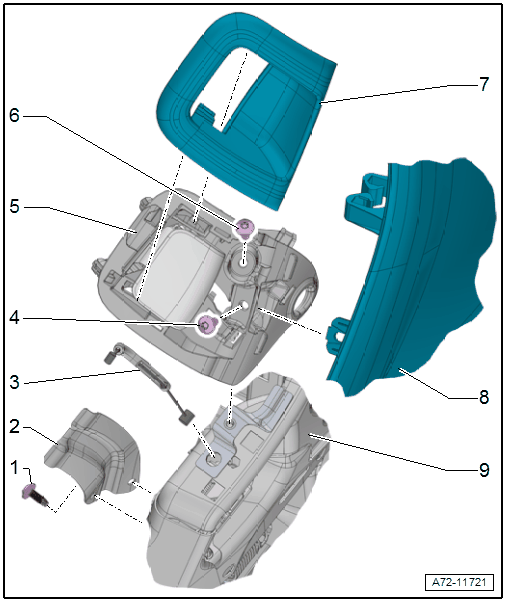

Fig 1: Exploded View Of Trim And Backrest Release, Super Sport Seat

Courtesy of AUDI OF AMERICA, LLC

1. Bolt
   • 3.5 Nm
   • Quantity: 2
2. Backrest Release Bracket
   • Removing and Installing. Refer to BACKREST RELEASE BRACKET, REMOVING AND INSTALLING, SUPER-SPORT .
3. Connecting Cable
   • For the backrest release
   • Between the handle and bracket
   • Engaged in the handle and bracket
   • Removing and Installing. Refer to BACKREST RELEASE, REMOVING AND INSTALLING, SUPER-SPORT SEAT .
4. Bolt
   • 3.5 Nm
5. Backrest Release
   • Removing and Installing. Refer to BACKREST RELEASE, REMOVING AND INSTALLING, SUPER-SPORT SEAT .
6. Bolt
   • 3.5 Nm
7. Backrest Release Trim
   • Removing and Installing. Refer to BACKREST RELEASE TRIM, REMOVING AND INSTALLING, SUPER-SPORT .
   • Press on until it engages audibly
8. Backrest Cover
9. Backrest Frame
