Headrest, Removing And Installing: Removing
-- Move the front seat forward into the lowest position and tilt backrests approximately 45°.
NOTE:
The release button is located on the outer left of the driver seat and inner left of the passenger seat.

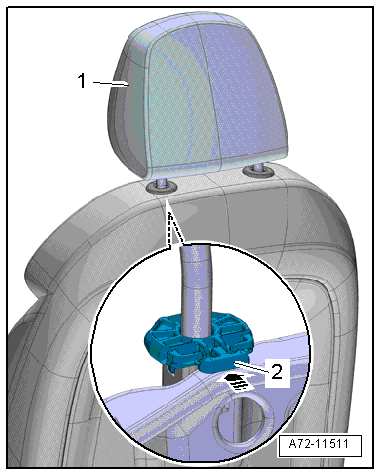

-- Search for release button pressure point -2- under the seat cover.
- The release button is approximately 35 mm below the upper edge of the backrest.
-- Press release button -arrow- and simultaneously pull out headrest -1-.
Market-Specific:
NOTE:
The release button is located on the left and right headrest guide.
-- Search for release button pressure point -2- under the seat cover.
- The release button is approximately 35 mm below the upper edge of the backrest.
-- Pull on both sides of the headrest -1- and remove it from the headrest guide.
-- Press the release button -arrow- and remove the headrest at the same time.
