Backrest Cover, Removing And Installing, Super-Sport Seat: Removing

Courtesy of AUDI OF AMERICA, LLC

Vehicle Versions With Backrest Release/Entry Assistance.

-- Remove the backrest release trim. Refer to BACKREST RELEASE TRIM, REMOVING AND INSTALLING, SUPER-SPORT .

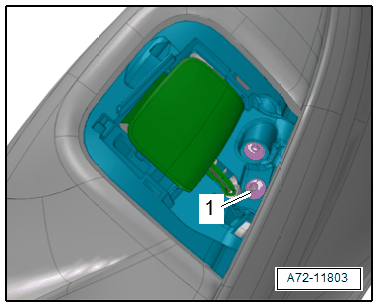

-- Remove the bolt -1-.

Continuation For All Seat Versions:

Courtesy of AUDI OF AMERICA, LLC

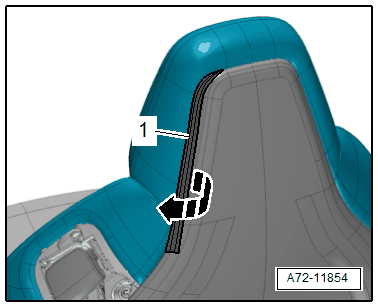

-- Lift out the clamping strip -1- for the cover from the backrest cover and remove the areas around the headrest from the backrest cover -arrow-.

Vehicle Versions Without Backrest Release/Entry Assistance:

Courtesy of AUDI OF AMERICA, LLC

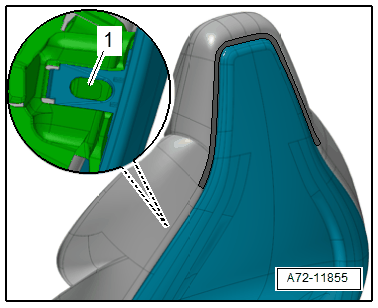

-- Pull the cover with the cushion as far forward as possible until the retaining tab is accessible.

-- Push down the retaining tabs -1- with a screwdriver and pull the backrest cover from the bracket.

Continuation For All Seat Versions:

Courtesy of AUDI OF AMERICA, LLC

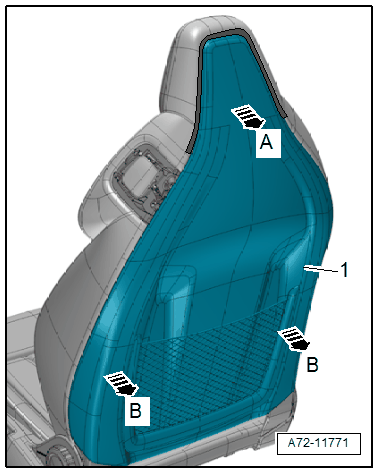

-- Unclip the upper backrest cover -1- beginning from the headrest -arrow A-.

-- Loosen the side retaining tabs -B arrows- and remove the backrest cover upward from the backrest.
