Connecting Cable, Removing And Installing, Standard/Sport Seat: Removing
WARNING:
- Follow all safety precautions when working on pyrotechnic components. Refer to SAFETY PRECAUTIONS WHEN WORKING WITH PYROTECHNIC COMPONENTS .
- Before handling pyrotechnic components (for example, disconnecting the connector), the person handling it must "discharge static electricity". For example, this can be done by briefly touching the door striker.
-- Remove the front seat. Refer to FRONT SEAT, REMOVING AND INSTALLING .
-- Fasten the front seat on the :VAS6136 . Refer to FRONT SEAT, MOUNTING ON FIXTURE FOR SEAT REPAIR .
-- Remove the backrest release trim. Refer to BACKREST RELEASE TRIM, REMOVING AND INSTALLING, STANDARD SEAT/SPORT SEAT .
-- Remove the backrest seat cover and cushion. Refer to BACKREST COVER AND CUSHION, REMOVING AND INSTALLING, STANDARD/SPORT SEAT .

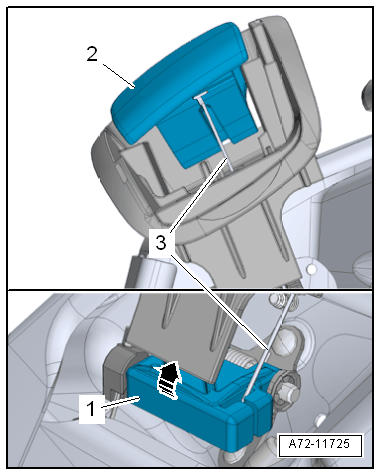

-- Pivot the backrest release bearing -1- upward -arrow- until stop and hold in this position.
-- Disengage the connecting cable -3- at the mount.
-- Pivot the operating lever -2- upward until it stops.
-- Disengage and remove the connecting cable from the operating lever.
