Backrest Release Trim, Removing And Installing, Super-Sport: Removing

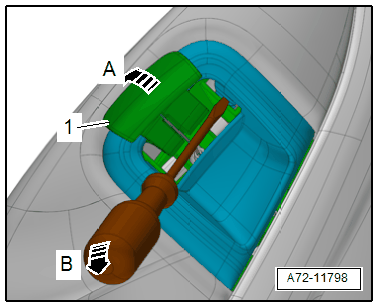

GWWA72-11798Courtesy of AUDI OF AMERICA, LLC

-- Pull the operating lever -1- upward -arrow A-.

-- Push a flat-head screwdriver between the trim and operating lever, as shown in the illustration.

-- Release the right catches -arrow B-.

-- Hold the operating lever pushed -1-, push a flat-head screwdriver between the trim and operating lever, as shown in the illustration.

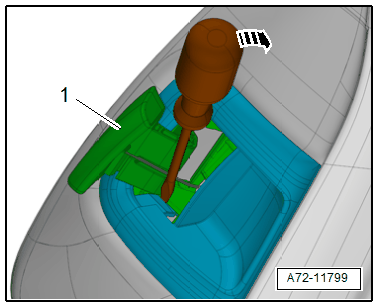

GWWA72-11799Courtesy of AUDI OF AMERICA, LLC

-- Release the left catches -arrow-.

-- Bring the operating lever -1- back into the resting position.

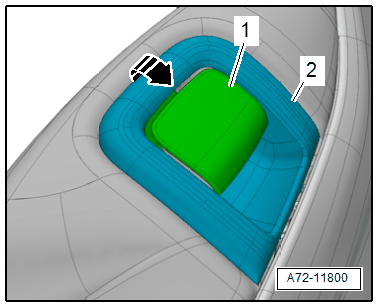

GWWA72-11800Courtesy of AUDI OF AMERICA, LLC

-- Disengage the trim -2- by hand in the direction of the -arrow-, and if necessary push on the opposite side.
