Overview - Glove Compartment

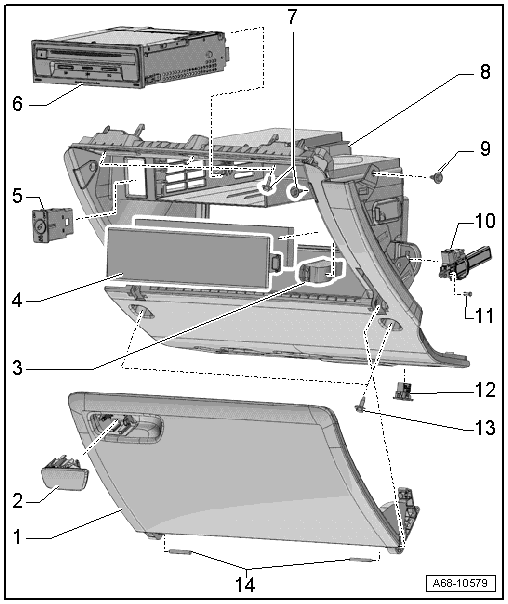

Fig 1: Exploded View Of Glove Compartment

Courtesy of AUDI OF AMERICA, LLC

1. Glove Compartment Lid
   • Removing and Installing. Refer to GLOVE COMPARTMENT LID, REMOVING AND INSTALLING .
2. Glove Compartment Handle
   • Removing and Installing. Refer to GLOVE COMPARTMENT HANDLE, REMOVING AND INSTALLING .
   • Lock Cylinder, Removing and Installing. Refer to GLOVE COMPARTMENT HANDLE LOCK CYLINDER, REMOVING AND INSTALLING .
   • Press into the glove compartment cover until it engages audibly
3. Glove Compartment Lamp -W6-
   • Component Location Overview. Refer to OVERVIEW - INSTRUMENT PANEL LAMPS .
4. Pollen Filter Cover
   • Press on until it engages audibly
5. Front Passenger Airbag Deactivation Key Switch -E224-
   • Not for North American market.
6. Information Electronics Control Module 1 -J794-
   • Allocation. Refer to the Electronic Parts Information (ETKA).
   • Overview. Refer to COMPONENT LOCATION OVERVIEW - INFOTAINMENT SYSTEM .
7. Bolt
   • Quantity: 6
   • Tightening specification and sequence. Refer to Fig 2.
8. Glove Compartment
   • Allocation. Refer to the Electronic Parts Information (ETKA).
   • Removing and Installing. Refer to GLOVE COMPARTMENT, REMOVING AND INSTALLING .
9. Bolt
   • Tightening specification and sequence. Refer to Fig 2.
10. Glove Compartment Lid Damping Element
    • With Glove Compartment Lamp Switch -E26-
    • Removing and Installing. Refer to GLOVE COMPARTMENT LID DAMPING ELEMENT, REMOVING AND INSTALLING .
11. Damping Element Hinge Pin
12. Right Footwell Lamp -W10-
    • Component Location Overview. Refer to OVERVIEW - INSTRUMENT PANEL LAMPS .
13. Bolt
    • Quantity: 2
    • Tightening specification and sequence. Refer to Fig 2.
14. Glove Compartment Lid Hinge Pin
    • Quantity: 2

Glove Compartment - Tightening Specification and Sequence

Fig 2: Glove Compartment - Tightening Sequence

Courtesy of AUDI OF AMERICA, LLC

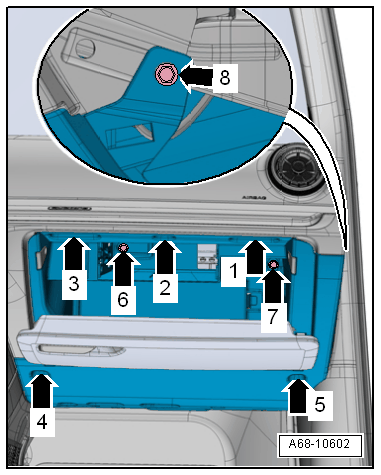

-- Tighten the bolts to 3 Nm in the sequence -arrows 1 to 8-.
