Glove Compartment Handle Lock Cylinder, Removing And Installing: Removing

Courtesy of AUDI OF AMERICA, LLC

-- Remove the glove compartment handle. Refer to GLOVE COMPARTMENT HANDLE, REMOVING AND INSTALLING .

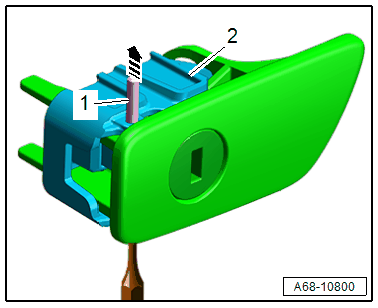

-- Drive out the axle -1- from the locating bore with a punch in the -direction of the arrow-.

-- Remove the cover -2-.

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Risk of destroying the lock cylinder.

The lock cylinder may only be removed and installed with the key properly inserted to prevent the tumblers and pressure springs from falling out.

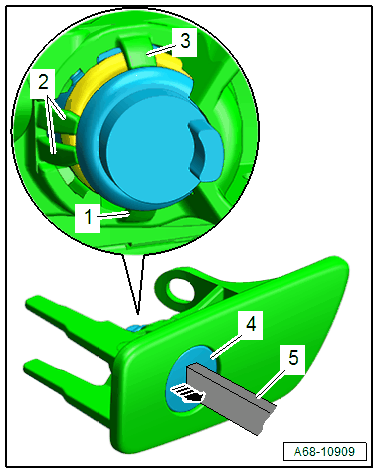

-- Insert the key -5- into the lock cylinder.

-- Carefully release the catches -1 through 3- one after the other using a small screwdriver and remove the lock cylinder -4- at the same time -arrow-.
