Glove Compartment Handle Lock Cylinder, Removing And Installing: Installing

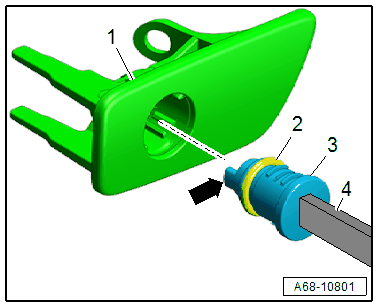

-- Insert the key -4- into the new lock cylinder -3-.
-- Remove the protective cap from the new lock cylinder.
-- Insert the lock cylinder with the seal -2- into the glove compartment handle -1- until it engages. Pay attention to the installation position of the pin.
- The pin -arrow- on the lock cylinder points to the left.
Further installation is the reverse order of removal.
