Driver Side Instrument Panel Cover, Removing And Installing: Removing

Courtesy of AUDI OF AMERICA, LLC

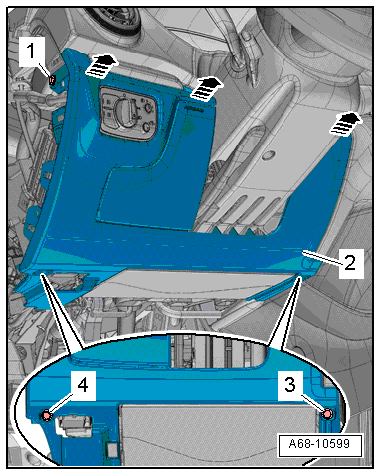

-- Remove the driver side instrument panel side cover. Refer to INSTRUMENT PANEL SIDE COVER, REMOVING AND INSTALLING .

-- Versions with footwell lamp, remove the footwell lamp. Refer to LAMPS .

-- Remove the side bolt -1-.

-- Remove the lower bolts -3- and -4-.

-- Unclip the driver side instrument panel cover -2- from the instrument panel using the :T10383/1  -arrows-.

-- Disconnect the connector from the light switch.

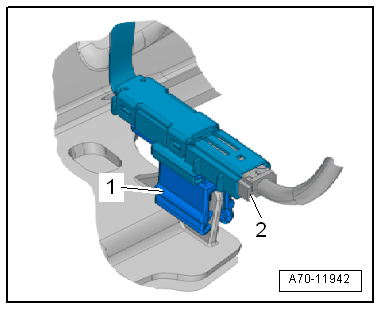

Vehicles with Ambient Lighting:

Courtesy of AUDI OF AMERICA, LLC

-- Unclip the clip -1- for the connector for the ambient lighting bulb.

-- Disconnect the connector -2- for the ambient lighting bulb.
