Center Armrest Upper Section, Removing And Installing: Removing

Courtesy of AUDI OF AMERICA, LLC

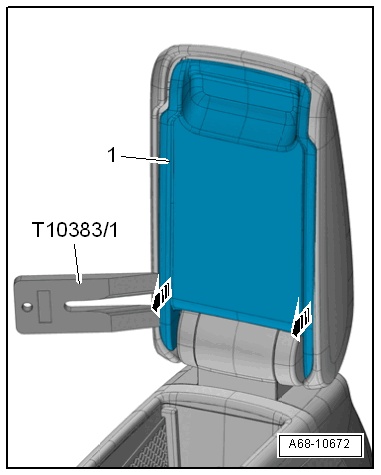

-- Carefully unclip the cover -1- starting at the sides from the center arm rest upper section -arrows- using the :T10383/1  .

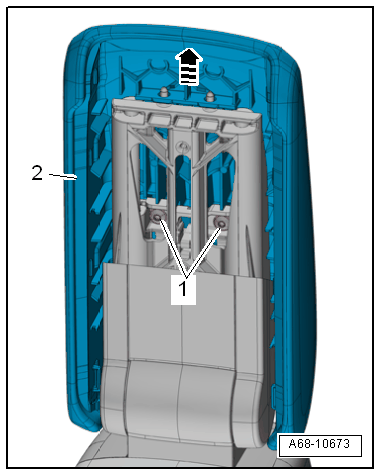

-- Remove the bolts -1-, and remove the center armrest upper section -2- upward -arrow-.

Courtesy of AUDI OF AMERICA, LLC
