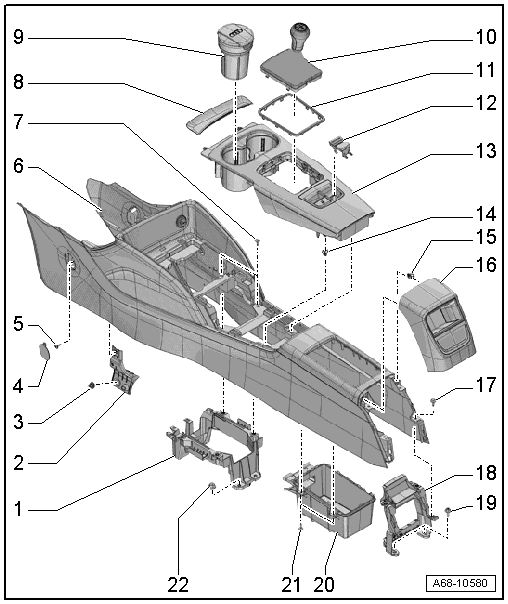

Center Console With Standard Equipment
- Securing Bracket
- For the center console
- Removing and Installing. Refer to CENTER CONSOLE BRACKET, REMOVING AND INSTALLING .
- Front Bracket
- For the center console
- Quantity: 2
- Removing and Installing. Refer to CENTER CONSOLE BRACKET, REMOVING AND INSTALLING .
- Nut
- 3.5 Nm
- Quantity: 2
- Cap
- Quantity: 2
- Push in the center console
- Bolt
- 1.5 Nm
- Quantity: 2
- Center Console
- Removing and Installing. Refer to CENTER CONSOLE, REMOVING AND INSTALLING .
- Versions with storage net: adding the storage net in the new center console. Refer to STORAGE NET, ADDING IN THE NEW CENTER CONSOLE .
- Bolt
- 3 Nm
- Quantity: 4
- Liner Mat
- Ashtray
- Equipped on some models
- Audi Logo on the ashtray cover is transverse to the direction of travel and ashtray can be used from the driver position
- Gearshift Lever/Selector Lever
- Overview. Refer to SELECTOR MECHANISM [For transmission(s) 0D9] .
- Decorative Trim
- For the center console insert
- Removing and Installing. Refer to CENTER CONSOLE DECORATIVE TRIM, REMOVING AND INSTALLING .
- Coin Holder
- Allocation. Refer to the Parts Catalog.
- Removing and Installing. Refer to COIN HOLDER, REMOVING AND INSTALLING .
- Engage in the rear of the center console and press on it until it engages audibly.
- Insert
- For the center console
- Removing and Installing. Refer to CENTER CONSOLE INSERT, REMOVING AND INSTALLING .
- Replace damaged or deformed clips
- Engage in the front of the center console and press on it until it engages audibly.
- Clip
- For the center console insert
- Quantity: 6
- Replace damaged or deformed clips
- Place in the insert
- Clip
- For the cover
- Quantity: 4
- Replace damaged or deformed clips
- Insert in the cover
- Rear Trim
- For the center console
- Removing and Installing. Refer to CENTER CONSOLE REAR TRIM, REMOVING AND INSTALLING .
- Press on until it engages audibly
- Bolt
- 3 Nm
- Quantity: 4
- Rear Bracket
- For the center console
- Removing and Installing. Refer to CENTER CONSOLE BRACKET, REMOVING AND INSTALLING .
- Bolt
- 8 Nm
- Quantity: 2
- Storage Compartment
- Allocation. Refer to the Parts Catalog.
- Removing and Installing. Refer to FRONT CENTER CONSOLE STORAGE COMPARTMENT, REMOVING AND INSTALLING .
- Bolts
- 1.4 Nm
- Quantity: 4
- Nut
- 8 Nm
- Quantity: 4
