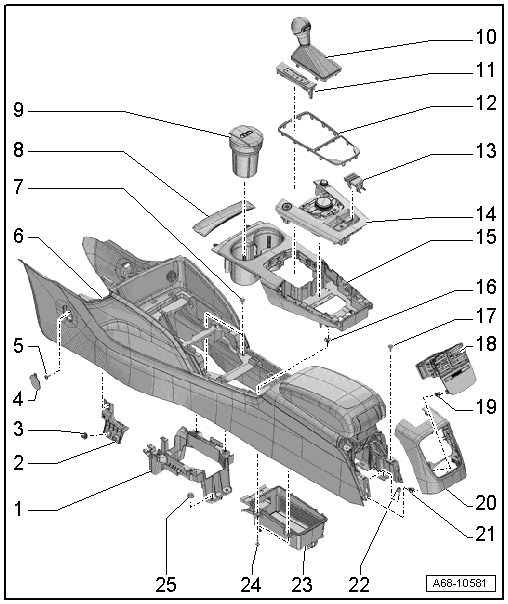

Center Console With Optional Equipment
- Securing Bracket
- For the center console
- Removing and Installing. Refer to CENTER CONSOLE BRACKET, REMOVING AND INSTALLING .
- Front Bracket
- For the center console
- Quantity: 2
- Removing and Installing. Refer to CENTER CONSOLE BRACKET, REMOVING AND INSTALLING .
- Nut
- 3.5 Nm
- Quantity: 2
- Cap
- Quantity: 2
- Push in the center console
- Bolt
- 1.5 Nm
- Quantity: 2
- Center Console
- Removing and Installing. Refer to CENTER CONSOLE, REMOVING AND INSTALLING .
- Versions with storage net: adding the storage net in the new center console. Refer to STORAGE NET, ADDING IN THE NEW CENTER CONSOLE .
- Bolts
- 3 Nm
- Quantity: 4
- Liner Mat
- Ashtray
- Equipped on some models
- Audi Logo on the ashtray cover is transverse to the direction of travel and ashtray can be used from the driver position
- Gearshift Lever/Selector Lever
- Overview. Refer to GEARSHIFT MECHANISM, CHECKING [For transmission(s) 0D9] .
- Selector Lever Transmission Range Position Display Unit -Y26-
- Component Location Overview. Refer to LAMPS .
- Decorative Trim
- For the center console insert
- Removing and Installing. Refer to CENTER CONSOLE DECORATIVE TRIM, REMOVING AND INSTALLING .
- Coin holder
- Allocation. Refer to the Parts Catalog.
- Removing and Installing. Refer to COIN HOLDER, REMOVING AND INSTALLING .
- Engage in the rear of the center console and press on it until it engages audibly.
- Multimedia System Control Head -E380-
- Allocation. Refer to the Parts Catalog.
- Component Location Overview. Refer to INFOTAINMENT SYSTEM .
- Press on until it engages audibly
- Center Console Insert
- Removing and Installing. Refer to CENTER CONSOLE INSERT, REMOVING AND INSTALLING .
- Replace damaged or deformed clips
- Engage in the front of the center console and press on it until it engages audibly.
- Clip
- For the center console insert
- Quantity: 6
- Replace damaged or deformed clips
- Place in the insert
- Bolt
- Quantity: 4
- Tightening specification. Refer to -Item 4- OVERVIEW - FRONT CENTER ARMREST => List Item:Bolt
- Storage Compartment/Vent
- Removing and Installing. Refer to CENTER CONSOLE REAR STORAGE COMPARTMENT, REMOVING AND INSTALLING .
- Install the cigarette lighter cut out/socket in the new storage compartment. Refer to CIGARETTE LIGHTER CUT OUT/SOCKET IN STORAGE COMPARTMENT, INSTALLING .
- Replace damaged or deformed clips
- Insert and press in all the way into the installation opening
- Clip
- For the storage compartment
- Quantity: 6
- Replace damaged or deformed clips
- Place in the storage compartment.
- Rear Trim
- For the center console
- Allocation. Refer to the Parts Information.
- Removing and Installing. Refer to CENTER CONSOLE REAR TRIM, REMOVING AND INSTALLING .
- Press on until it engages audibly
- Clip
- For the cover
- Quantity: 4
- Replace damaged or deformed clips
- Insert in the cover
- Bolt
- Quantity: 4
- Tightening specification. Refer to -Item 5- OVERVIEW - FRONT CENTER ARMREST => List Item:Bolt
- Storage Compartment
- Allocation. Refer to the Parts Catalog.
- Removing and Installing. Refer to FRONT CENTER CONSOLE STORAGE COMPARTMENT, REMOVING AND INSTALLING .
- Bolt
- 1.4 Nm
- Quantity: 4
- Nut
- 8 Nm
- Quantity: 4
