Home >> Audi >> 2017 >> S3 Prestige >> Repair and Diagnosis (Single Page) >> Body & Frame >> Seats >> Interior Equipment -- (Sedan) >> 68 Interior Equipment >> Center Console >> Coin Holder, Removing And Installing >> Removing

Coin Holder, Removing And Installing: Removing

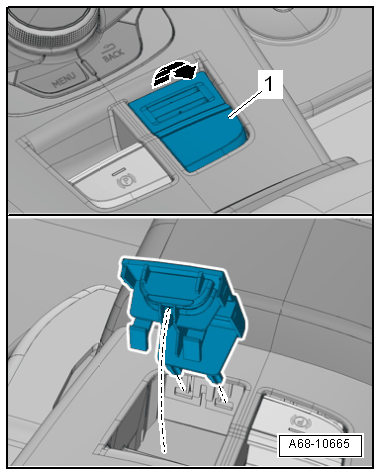

GWWA68-10665Courtesy of AUDI OF AMERICA, LLC

-- Pry off the coin holder -1- using the :3409  from the center console -arrow-.

-- Remove the coin holder forward from the center console.
