Tension Spring, Removing And Installing

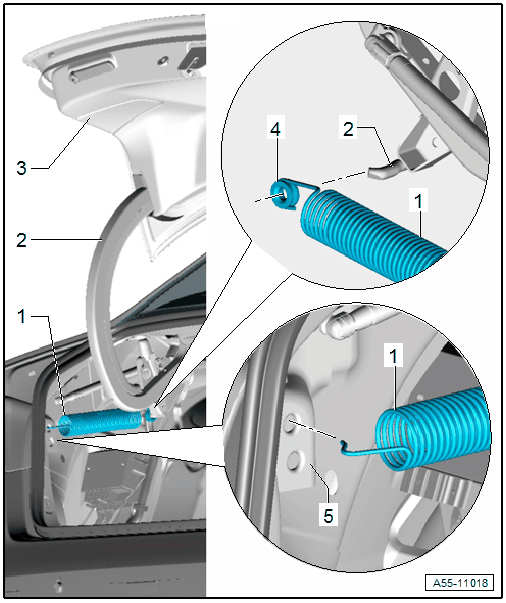

GWWA55-11018Courtesy of AUDI OF AMERICA, LLC
  1. Tension Spring
    • Removing

      -- Remove the luggage compartment side trim.

      -- First disengage at the body, then remove from the hinge with the eyelet.

    • Installing

      -- First push with the eyelet in the hinge, then engage in the body.

  2. Hinge
  3. Rear Lid
  4. Eye
  5. Bracket
