Remove the Operating Lever Handle

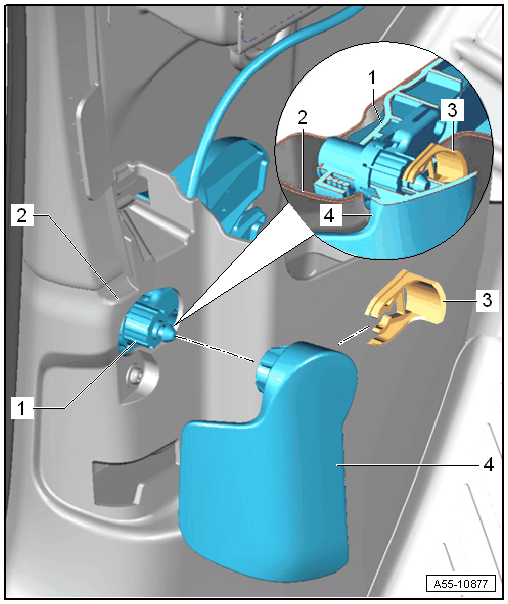

GWWA55-10877Courtesy of AUDI OF AMERICA, LLC
  1. Release Lever
  2. >>A-Pillar<< Lower Trim
  3. Clip
    • Press in completely, it must engage at the same time.
  4. Release lever handle
    • First disengage the cable from the coupling inside the engine compartment. Refer to Attach the Release Cable into the Coupling .
    • Pry the clip out of the release lever.
    • Remove the handle from the side of the operating lever.
