Gas-Filled Strut, Removing And Installing.: Notes

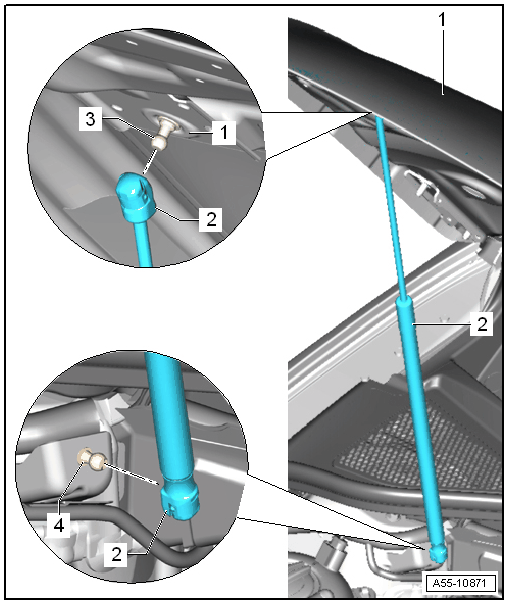

GWWA55-10871Courtesy of AUDI OF AMERICA, LLC
  1. Hood
  2. Gas-Filled Strut
    • Lift the locking spring slightly and pull the gas-filled strut off the ball pin.
      • Ensure correct positioning during installation: The gas-filled strut tube must be attached on the body-side.
  3. Ball Pin
  4. Ball Pin
