Bumper Cover Lower Section, Removing And Installing, RS3 From My 2019: Removing

-- Remove the rear bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

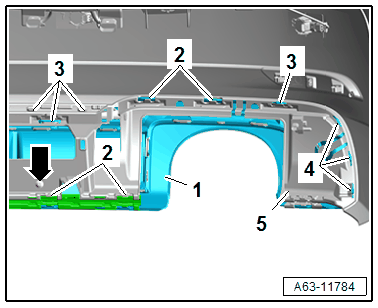

-- Remove the bolts -arrow-.

GWWA63-11784Courtesy of AUDI OF AMERICA, LLC

-- Release the catches -2, 3 and 4- and remove the lower section -1- from the bumper cover -5-.
