Overview - Impact Member, RS3

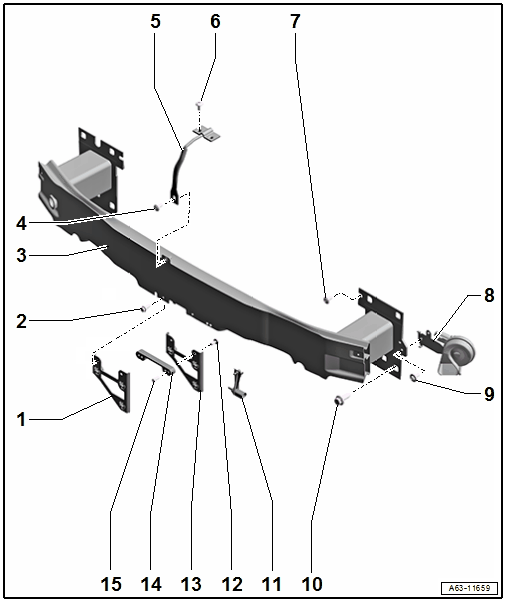

Fig 1: Exploded View Of Impact Member (RS3)

Courtesy of AUDI OF AMERICA, LLC

Bracket
- For Control Module for Adaptive Cruise Control -J428-
- Through MY 2018
Bolt
- Tightening specification. Refer to OVERVIEW - ADAPTIVE CRUISE CONTROL .
Impact Member
- Removing and Installing. Refer to IMPACT MEMBER, REMOVING AND INSTALLING .
Bolt
- Tightening specification. Refer to -item 6- : Screws
Retaining Bracket
- For the hood release lever
Bolt
- Tightening specification. Refer to -item 6- : Screws
- Quantity: 2
Bolt
- 4.5 Nm
Bracket
- For the signal horn
- Overview. Refer to OVERVIEW - HORN .
Bolt
- Tightening specification. Refer to OVERVIEW - HORN .
Bolt
- 50 Nm
- Quantity: 4
Bracket
- For the Outside Air Temperature Sensor -G17-
- Removing and Installing. Refer to Outside Air Temperature Sensor -G17- BRACKET, REMOVING AND INSTALLING .
Bolt
- 8 Nm
- Quantity: 2
Bracket
- For Control Module for Adaptive Cruise Control -J428-
- From MY 2019
Adapter
- From MY 2019
Bolt
- Tightening specification. Refer to OVERVIEW - ADAPTIVE CRUISE CONTROL .
