Spoiler Lower Section, Removing And Installing, RS3 Sedan, RS3 SPORTBACK From My 2019: Notes

Removing

-- Remove the air intake grille. Refer to AIR INTAKE GRILLE, REMOVING AND INSTALLING, RS3 SEDAN, RS3 SPORTBACK FROM MY 2019 .

-- Remove the lower reinforcement brace. Refer to LOWER REINFORCEMENT BRACE, REMOVING AND INSTALLING, RS3 SEDAN, RS3 SPORTBACK FROM MY 2019 .

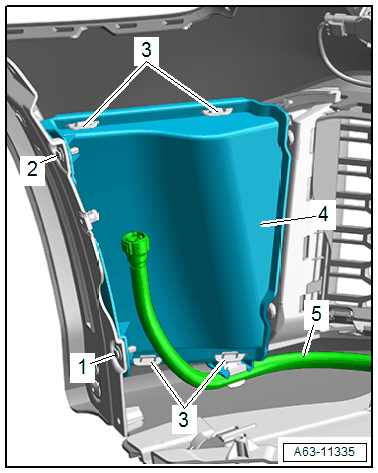

-- Free up the washer fluid hose -5-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the expanding rivets -1 and 2-.

-- Release the catches -3- and remove the trim -4- toward the inside.

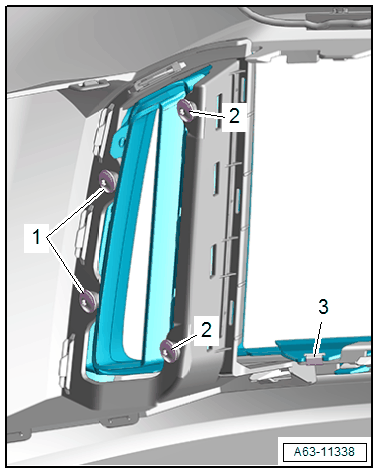

-- Remove the bolts -1 and 2-.

Courtesy of AUDI OF AMERICA, LLC

-- Pry out the clamp -3-.

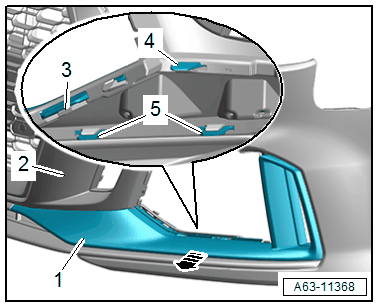

-- Release the catches -3, 4 and 5-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the spoiler lower section -1- from the bumper cover -2- in direction of -arrow-.
