Radiator Air Duct, Removing And Installing: Removing

-- Remove the front bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

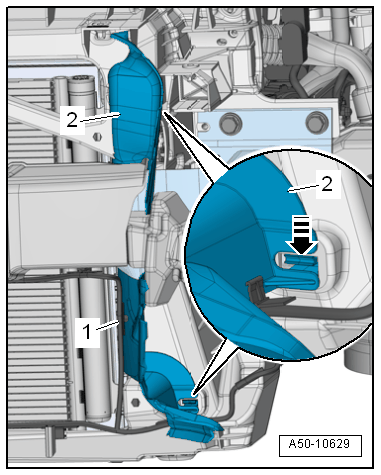

-- Free up the wiring harness -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Open the tabs -arrow-.

-- Pivot the air duct -2- to the vehicle center and remove.
