Driver/Passenger Side Rear Power Window Button -E711- / -E713-, Removing And Installing: Removing

-- Remove the rear door trim panel. Refer to REAR DOOR TRIM PANEL, REMOVING AND INSTALLING .

-- Remove the insulation mat.

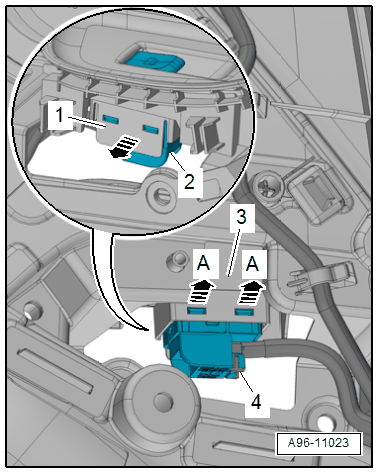

-- Carefully release the hooks in direction of -arrows A- with a small screwdriver.

GWWA96-11023Courtesy of AUDI OF AMERICA, LLC

-- Release the unlock button -1- in the direction of -arrow-.

-- Remove the window regulator switch -2- from the switch mount -3- and remove it to the rear.

-- Disconnect the connector -4-.
