Overview - Cigarette Lighter, 12 V Socket

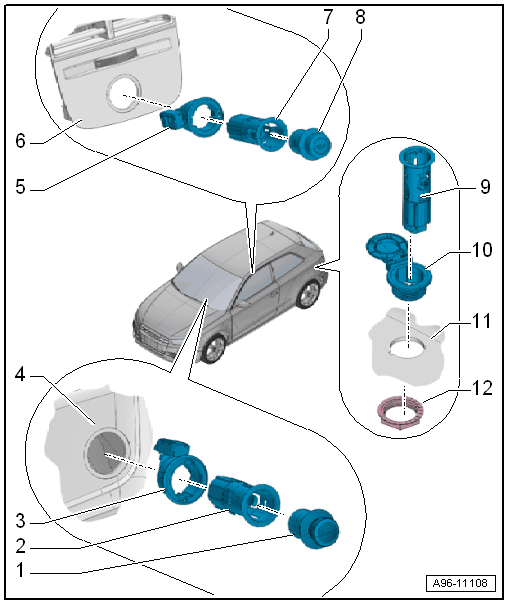

Fig 1: Cigarette Lighter, 12 V Socket Exploded View

Courtesy of AUDI OF AMERICA, LLC

1. Cigarette Lighter
2. Cigarette Lighter -U1-
   • Removing and installing. Refer to Cigarette Lighter -U1-, REMOVING AND INSTALLING .
3. Cigarette Lighter Illumination Bulb -L28-
   • For Cigarette Lighter -U1-
   • Removing and installing. Refer to Cigarette Lighter Illumination Bulb -L28-, REMOVING AND INSTALLING .
4. Front Center Console
5. Socket Illumination Bulb -L42-
   • For 12 V Socket -U5-
   • Removing and installing. Refer to Socket Illumination Bulb -L42-, REMOVING AND INSTALLING .
6. Rear Center Console Vent
   • Vehicle equipment version with center console rear storage compartment
7. 12 V Socket -U5-
   • Removing and installing. Refer to 12 V Socket -U5-, REMOVING AND INSTALLING .
8. Blind Cover
9. Socket -U-
   • Various installed locations
   • Removing and installing. Refer to Socket -U-, REMOVING AND INSTALLING .
   • Replacing. Refer to Socket -U-, REPLACING .
10. Mount with Cover
    • For Socket -U-
11. Luggage Compartment Side Trim Panel Cover
12. Nut
    • 2 Nm
