Main Fuse Panel On Battery, Removing And Installing: Removing
-- Disconnect the ground cable from the battery when the ignition is switched off. Refer to BATTERY, DISCONNECTING AND CONNECTING, BATTERY IN LUGGAGE COMPARTMENT .
-- Sportback: remove the tool box with the vehicle tools.

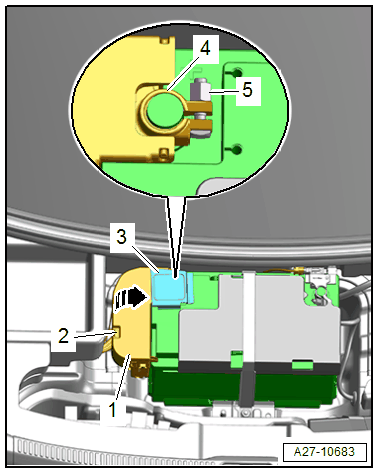

-- Open the cover -3- over the battery positive terminal.
-- Turn the nut -5- a few turns and remove the battery positive cable terminal -4- from the battery positive terminal.
-- Release the retainer -2- and open the flap -1- over the main fuse panel -arrow-.

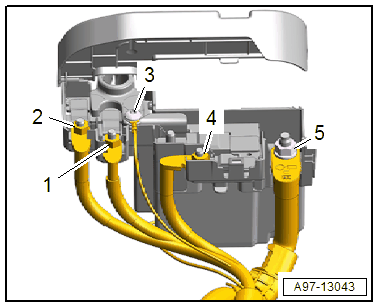

-- Disconnect the wires -1 through 5-.

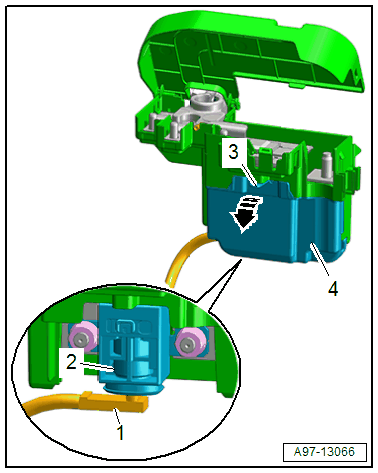

-- Release the retainer -3- and open the flap -4- -arrow-.
-- Disconnect the connector -1- from the cut-off relay -2-.
-- Remove the main fuse panel.
