Battery Fuse Panel, Removing And Installing: Removing

-- With the ignition switched off, disconnect the ground cable from the battery. Refer to BATTERY, DISCONNECTING AND CONNECTING, HIGH VOLTAGE SYSTEM .

-- Remove the nuts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

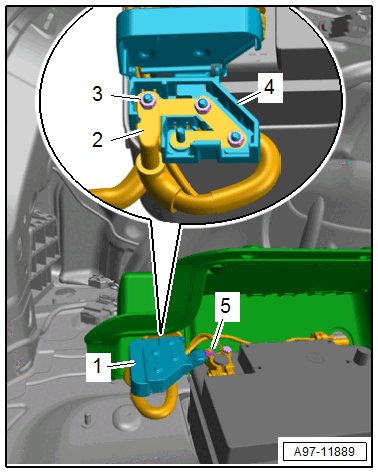

-- Pry up the cover -1- as far as possible.

-- Open the cover -1-, remove the nut -3- and move the positive cable -2- to the side.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the nut -5-.

-- Remove the fuse panel -4- from the battery terminal.
