Relays on E-Box, With RS3

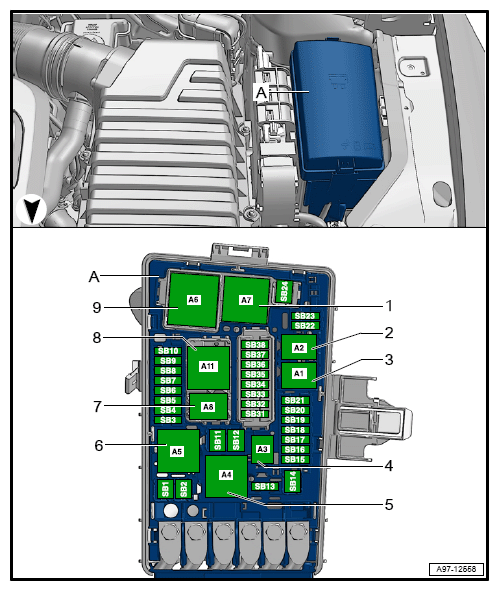

G12759653Courtesy of AUDI OF AMERICA, LLC
  1. 1 - Not Used
    • Connection A7
  2. 2 - Starter Relay 2 -J907-
    • Connection A2
  3. 3 - Starter Relay 1 -J906-
    • Connection A1
  4. 4 - Horn Relay -J413-
    • Connection A3
  5. 5 - Not Used
    • Connection A4
  6. 6 - Main Relay -J271-
    • Connection A5
  7. 7 - Auxiliary Engine Coolant (EC) Pump Relay -J496-
    • Connection A8
  8. 8 - Engine Component Power Supply Relay -J757-
    • Connection A11
  9. 9 - Not Used
    • Connection A6
