Relays on E-Box, W/O Hybrid Drive

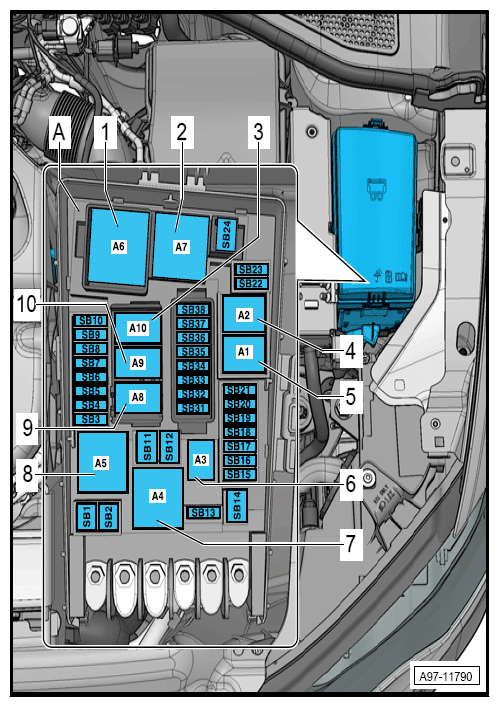

G12759651Courtesy of AUDI OF AMERICA, LLC
  1. 1 - Automatic Glow Time Control Moule -J179-
    • Connection A6
  2. 2 - Preheating Coolant, Low Heat Output Relay -J359-
    • Connection A7
  3. 3 - Not Used
    • Connection A10
  4. 4 - Starter Relay 2 -J907-
    • Connection A2
  5. 5 - Starter Relay 1 -J906-
    • Connection A1
  6. 6 - Horn Relay -J413-
    • Connection A3
  7. 7 - High Heat Output Relay -J360-
    • Connection A4
  8. 7 - Secondary Air Injection (AIR) Pump Relay -J299-
    • Connection A4
  9. 7 - Vacuum Pump Relay -J318-
    • Connection A4
  10. 8 - Main Relay -J271-
    • Connection A5
    • Only models with gasoline engine
  11. 8 - Terminal 30 power supply relay -J317-
    • Connection A5
    • Only models with diesel engines
  12. 9 - Engine Component Power Supply Relay -J757-
    • Connection A8
  13. 9 - Gas Shut-Off Valve Relay -J908-
    • Connection A8
    • Only models with engine code CPWA
  14. 10 - Power Supply Relay -J16-
    • Connection A9
