Fuse Panel, Battery In Luggage Compartment, With Hybrid Drive

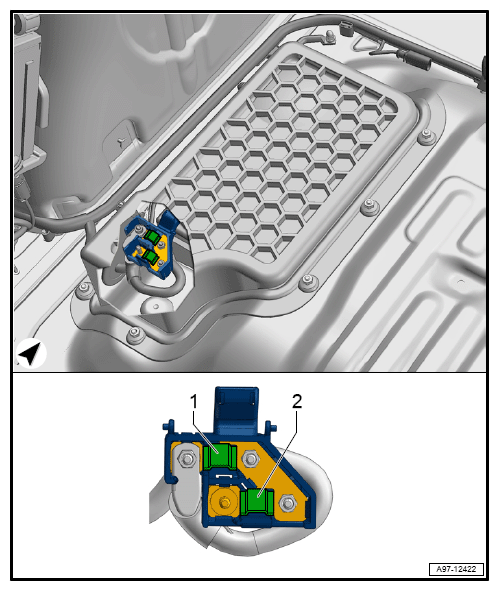

G12759645Courtesy of AUDI OF AMERICA, LLC
  1. Fuse 1 (30) on battery fuse holder -S162- - 200 A
  2. Fuse 2 (30) on battery fuse holder -S163-
