Fuse Panel A -SA-, Without Hybrid Drive

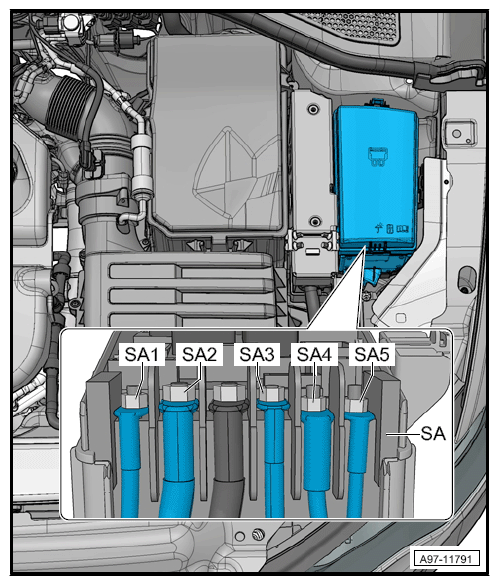

G12759636Courtesy of AUDI OF AMERICA, LLC
  1. SA - Fuse Panel A
  2. SA1 - Fuse 1 (On Fuse Panel A)
  3. SA2 - Fuse 2 (On Fuse Panel A)
  4. SA3 - Fuse 3 (On Fuse Panel A)
  5. SA4 - Fuse 4 (On Fuse Panel A)
  6. SA5 - Fuse 5 (On Fuse Panel A)
