Overview - Headlamp Washer System, AUDI A3 Without Side Auxiliary Cooler

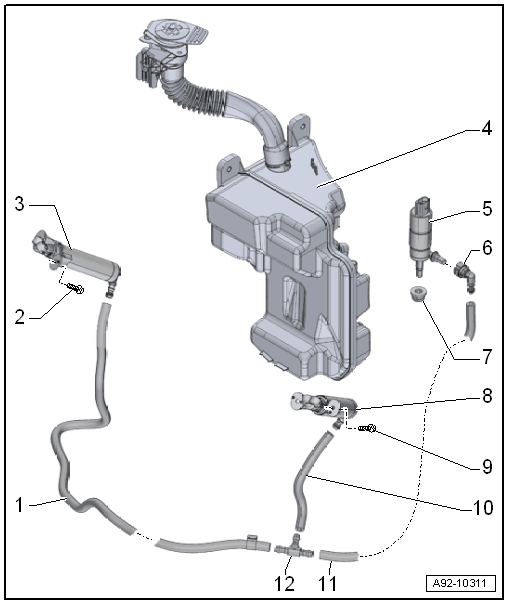

Fig 1: Exploded View Of Headlamp Washer System (AUDI A3 Without Side Auxiliary Cooler)

Courtesy of AUDI OF AMERICA, LLC

1. Washer Fluid Hose
   • For the right spray nozzle
2. Bolt
   • 0.9 Nm
   • Quantity: 2
3. Right Spray Nozzle
   • Removing and installing. Refer to SPRAY NOZZLES, REMOVING AND INSTALLING, WITHOUT SIDE AUXILIARY COOLER .
4. Windshield Washer Fluid Reservoir
   • Removing and installing. Refer to WASHER FLUID RESERVOIR, REMOVING AND INSTALLING, AUDI A3 WITHOUT SIDE AUXILIARY COOLER .
5. Headlamp Washer Pump -V11-
   • Removing and installing. Refer to Headlamp Washer Pump -V11-, REMOVING AND INSTALLING, AUDI A3 WITHOUT SIDE AUXILIARY COOLER .
6. Connection
   • For washer fluid hose
   • To replace, warm and remove the washer fluid hose
7. Grommet
   • Replace if damaged.
8. Left Spray Nozzle
   • Removing and installing. Refer to SPRAY NOZZLES, REMOVING AND INSTALLING, WITHOUT SIDE AUXILIARY COOLER .
9. Bolt
   • 0.9 Nm
   • Quantity: 2
10. Washer Fluid Hose
    • For the left spray nozzle
11. Washer Fluid Hose
    • From the Headlamp Washer Pump -V11-
12. T-Connection
    • For washer fluid hose
    • To replace, warm and remove the washer fluid hose
