Windshield And Rear Window Washer Pump -V59-, Removing And Installing, AUDI A3/S3 With Side Auxiliary Cooler: Removing

-- Remove the noise insulation. Refer to NOISE INSULATION .

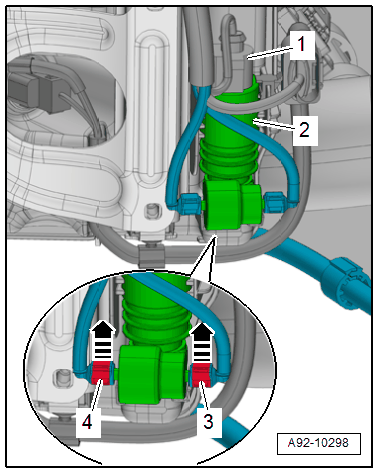

-- Disconnect the connector -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Place a drip tray under the windshield washer fluid reservoir.

-- Release the locking clamps -3 and 4- in direction of -arrows- and remove the water hose from the windshield washer pump -2-

-- Remove the windshield washer pump upward from the windshield washer fluid reservoir.
