Washer Fluid Reservoir, Removing And Installing, AUDI RS3: Removing

-- Remove the washer fluid reservoir filler neck. Refer to WASHER FLUID RESERVOIR FILLER TUBE, REMOVING AND INSTALLING, AUDI RS3 .

-- Remove the left front wheel spoiler. Refer to WHEEL HOUSING LINER .

-- Place the drip tray under the connector.

Courtesy of AUDI OF AMERICA, LLC

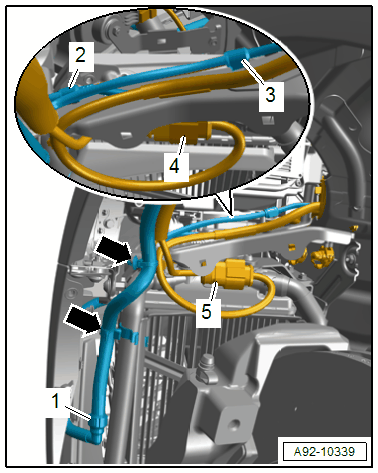

-- Disconnect the connector -4- and free up the connector -5-.

-- Release the clips and remove the washer fluid hoses -2 and 3-.

-- Push the release button and remove the washer fluid hose -1- for the headlamp washer system and free it up -arrows-.

-- Remove the nuts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the washer fluid reservoir -1- from the threaded pins and remove.
